Heat Exchangers

  • Order Heat Exchangers

    1. Do you know the required unit size? If your answer is yes, then see contact information to email, fax, or mail your inquiry.

    2. Unsure of the size but know the process information? We will size it for you using software from HTRI. Click below to send an inquiry, or see contact information to email, fax, or mail your inquiry.

    3. After receipt of our quote, fax your purchase order to 205-345-0009. Confirmation of order will be mailed.

    Heat Exchanger Inquiry Button
  • Recent Heat Exchangers


    BEM White Liquor HeaterBEM White Liquor Heater This unit consists of 4 stacked heat exchangers run in parallel. The tube-side consists of Alloy 2507 and the shell-side is carbon steel. Its unique configuration allows it to fit into a small amount of...

    EvaporatorEvaporator 47-288 AXL Evaporator. Carbon steel shell and tubeside. (1866) 3/4" tubes. It is used in the commercial refrigeration industry. Liquid ammonia is passed over the tubes which are heated by ethylene glycol...

    Dehydration Column Main CondenserDehydration Column Main Condenser This heat exchanger is one that we did back in 1993. It is a BEM shell and tube heat exchanger. It is one of the larger units that we produce. Once this unit was put in service, it was vertical in orientation....

    Dehydration Column Main Condenser 2Dehydration Column Main Condenser 2 This is a view of the unit leaving the area on the train spur that is next to plant 1....

    BXM Heat ExchangerBXM Heat Exchanger This is a BXM type or cross-flow type on the shell side. It does look like it has a sump but the heads on the large shell side nozzles (top and bottom) are just for hydro-test. The large shell nozzles...

    BKM C2 Splitter Re-boilerBKM C2 Splitter Re-boiler The heat exchanger runs CO2 on one side and propylene on the other. It's typically used in an industrial oil refinery environment....

    BEM Phosgene ReactorBEM Phosgene Reactor This is a very unique vertical unit. It has inlet and outlet distributors and is designed to handle some very extreme chemicals....

    High Pressure DEU Effluent Feed ExchangersHigh Pressure DEU Effluent Feed Exchangers These units are used in ammonia processing. They are a pair of stacked high pressure units. They were designed to handle 810 degrees F on the shell side and 755 degrees F on the tube side. They're rated...

    manage

  • Shell and Tube Heat Exchangers

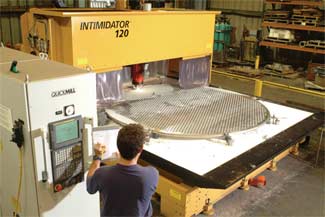

    Quickmill Drilling Machine

    Drilling equipment is numerically controlled to insure the accuracy required for baffles and tube sheets unique to heat exchangers. This capability includes heavy duty drilling capacity that has the ability to accurately drill tube sheets up to 10" thick and 120" in diameter. Close tolerances on these machines are easily held. Modern welding equipment, including multiple submerged arc, allows efficient and smooth welding of heat exchangers for all sizes from 3" pipe to 120" plate shells. Welding capabilities, including TIG, MIG, SAW, SMAW, FCAW with a variety of wire and fluxes, can be utilized to meet the most sophisticated weld procedures. This capability is supported by a weld engineering group who stay on top of the latest developments in this continually changing technology.

    Exchanger Welder in tube-rack Southern Heat Exchanger Corporation utilizes the latest in modern metal forming and cutting equipment to insure precise adherence to dimensions and close tolerances.

    Qualified ASME Welders and an extensive radiographic capability support all types of ASME Section VIII construction, including lethal service requirements.

    Heat treating facilities are also readily available. Tube-Tube sheet welding utilizes modern computer controlled machines that make the tube to tube sheet joint in a uniform manner, with and without filler metal as the procedure requires.

    Tubes are expanded into tube sheets at a uniform rate using the most current technology to assure consistent expansion and leak-tight joints.

    Tube Sheet Measurement Before Southern Heat Exchanger Corporation's nameplate is placed on any finished product, the exchanger has been carefully inspected throughout the production process by our highly trained quailty control department. Each heat exchanger is fully supported by ASME Code forms and material test certificates that attest we are producing a thoroughly engineered high-quality product. In addition, ASME Authorized Inspectors witness all tests and documentation prior to shipment.

    Consider Southern Heat Exchanger Corporation before your next heat exchanger purchase.
